XALTER Network Quick Start for IT Teams
Full Network Requirements
This guide contains all mandatory allowlist settings, port configurations, and bandwidth requirements for the XALTER ecosystem.
01. Bandwidth & Connection
📉 Minimum Performance
10 Mbps Down / 2 Mbps Up (per device)
🚀 Recommended (Multiplayer)
25 Mbps Down / 5 Mbps Up (per device)
Connection Type: Stable Wi-Fi (WPA2/3) or Wired Ethernet via USB-C adapter.
02. Domains & Endpoints to Allow
| Service | Domain / Endpoint |
|---|---|
| Auth0 (Login) | xalter.us.auth0.com |
| Playfab API | 83CC8.playfabapi.com |
| Photon Fusion | *.photonindustries.io ns.photonengine.io |
| Unity CCD | *.client-api.unity3dusercontent.com |
| Xalterverse API | xalterverse-client-config.vercel.app |
| ManageXR (MDM) | *.managexr.com |
🔒 SSL Note: If SSL Inspection is enabled, the domains above should be exempted to prevent handshake failures.
03. Port & Protocol Summary
| Service | Protocol | Ports | Requirement |
|---|---|---|---|
| Web/API/Auth | TCP | 80, 443 | Mandatory |
| Multiplayer/STUN | UDP | 443, 3478-3480 | Mandatory |
| Device Management | TCP | 443 | ManageXR / OTA |

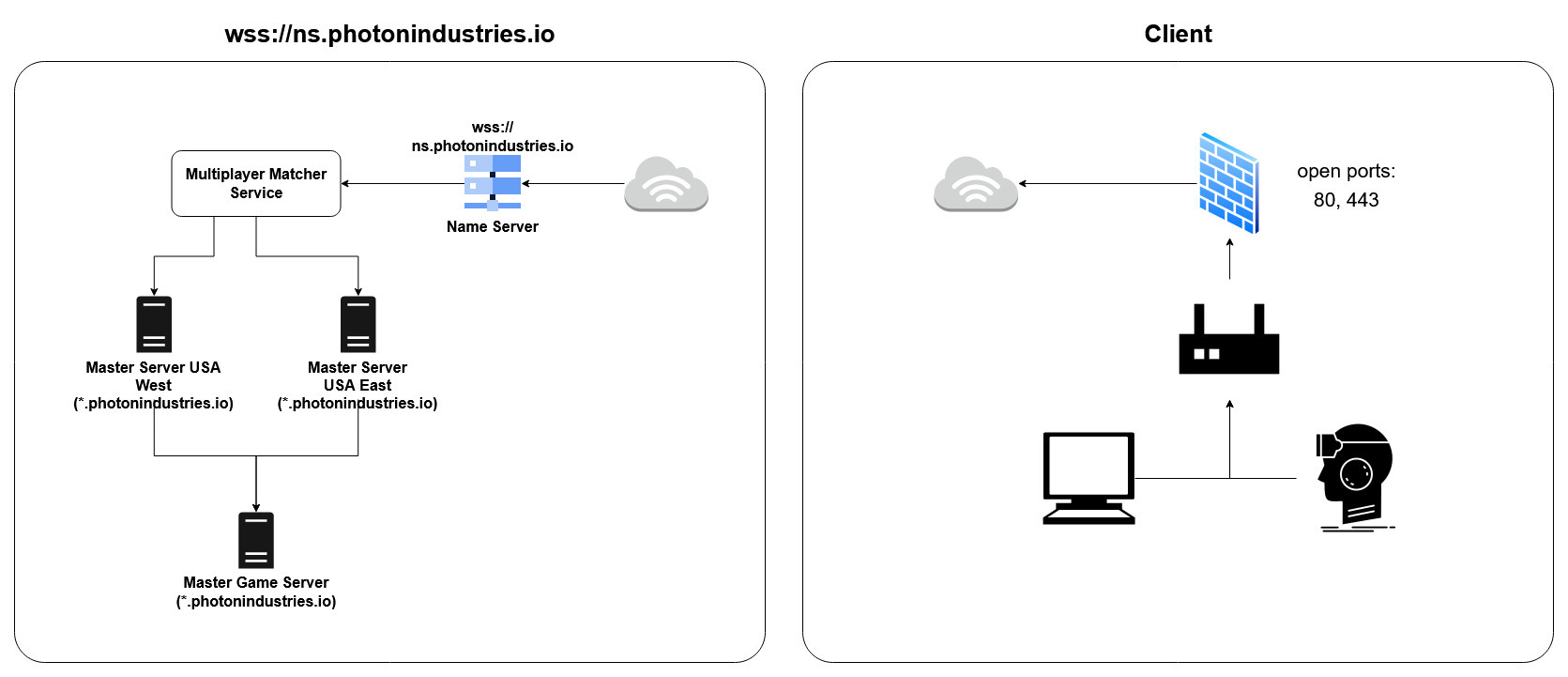

04. Network Architecture Diagram
Technical visualization of device-to-cloud traffic flow.
